What is the Difference between Soundproof Panel and Acoustic Panel?

Are you tired of being disturbed by background noise or struggling with unclear sound in your home theater? The solution lies in understanding the difference between soundproofing and acoustic treatment. The key distinction is that acoustic panels improve a room’s acoustics by absorbing sound and lowering echo and reverberation. Soundproofing panels, on the other hand, try to keep sound from moving between areas.

Soundproofing demands building with heavy materials to keep sound from getting in or out of a room. Acoustic sound panels, on the other hand, improve the sound quality in a room. The distinction between soundproof panels and acoustic panels is crucial for achieving optimal sound quality in any space. Although the two are often confused, they play different roles in sound management.

Low to No Maintenance Interior Acoustic Panels

In a world filled with noise, acoustic panels emerge as the elegant solution to create serene environments.

View More

What Are Soundproof Panels?

Soundproof panels are very important for keeping sound from leaking out and noise from coming in from outside. They are made to fix problems with sound transmission in different settings. For instance, if noise from a neighbor’s house makes it hard to work in a regular home office, putting up soundproof panels can help a lot.

The main job of soundproof panels is to keep sound from getting in or out of a room. They do this by adding bulk to walls or other surfaces, which makes it harder for sound waves to travel through them. This technology is based on physical principles and can effectively block noise that comes from the air and from structures.

Definition and Primary Function

Soundproof panels are made to make walls or surfaces heavier, which stops sound waves from traveling through them. The main thing they do is keep sound from moving from one room to another. In real life, this means that installing soundproof panels on apartment walls can reduce noise disputes between neighbors. This can effectively enhance the privacy of the apartment.

Materials Used in Soundproof Panels

In most cases, soundproofing panels are composed of high-density materials. Examples include high-density vinyl materials, acoustic caulking compounds, and specialized sound-insulating materials. These materials were chosen because they can stop sound waves from moving. For example, mass-loaded vinyl (MLV) is a flexible material that makes walls heavier, which makes them better at blocking sound. This substance can cut noise by 20 to 30 decibels in homes.

How Soundproof Panels Block Sound Transmission

Soundproof panels stop sound from traveling through them by using mass, damping, and decoupling. These panels make a barrier that sound waves have a hard time getting through, which lowers noise from the air and the structure. In a real-life example, a recording studio used decoupling technology to separate the layers of the walls, which stopped direct vibration transmission. This cuts down on outside noise by roughly 40 dB.

What Are Acoustic Panels?

Acoustic panels are very important for getting the best sound quality. They cut down on unwanted sound reflections. Acoustic panels are important parts of sound control because they can make sound clearer in a room. For instance, if echoes make talks hard to understand in a conference room, acoustic panels can soak up extra sound waves and make interactions clearer. They don’t obstruct sound. Instead, they focus on improving sound quality inside.

Definition and Primary Function

Acoustic panels are designed to absorb sound energy, reducing echoes and making music clearer. Their main job is to reduce echoes and sound reflections, making the sound environment more controlled. In educational contexts, such as classrooms, acoustic panels can minimize noise levels and boost students’ concentration.

Materials Used in Acoustic Panels

Acoustic panels use various materials. These include Owens Corning 703 and 705, mineral wool 1260 and 1280, and polyester fiber material. These materials offer different benefits, such as eco-friendliness, durability, and high sound absorption rates.

How Acoustic Panels Absorb Sound Waves

Acoustic panels absorb sound waves through a process where sound energy is converted into heat within the panel material. This is achieved as sound waves pass through a complex network of fibers, losing energy through friction.

• Sound waves enter the porous material of the acoustic panel.
• Acoustic energy is converted to heat energy within the fibers.
• Absorption effectiveness varies by frequency, typically being more effective at mid-to-high frequencies.
• Strategic placement at first reflection points can maximize effects.
• The absorption process reduces reflected sound energy, lowering reverberation time.

Key Differences Between Soundproof Panels and Acoustic Panels

To handle sound well, you need to know the difference between soundproof panels and acoustic panels. Both are used to control sound, although they have different uses and features. This part will go into detail on how they are used, built, and put together so that readers may make smart choices. Knowing how to tell them apart can save time and money.

Purpose: Blocking Sound vs. Absorbing Sound

Soundproof panels are designed to block sound transmission between spaces. Acoustic panels absorb sound waves to reduce reverberation and echoes within a room. For example, in a home theater, soundproof panels prevent sound from leaking out. Acoustic panels improve internal sound quality. This distinction directly affects the overall acoustic performance of a space.

Construction and Density Differences

Soundproof panels are usually thicker and heavier because they are made of materials that keep sound from leaking out. Acoustic panels, on the other hand, are lighter and use porous materials to soak up sound energy. The difference is due to the materials used: soundproofing focuses on density, while acoustics focuses on porosity. In real tests, high-density soundproof panels can get STC ratings of 50. Acoustic panels’ NRC ratings are between 0.5 and 1.0.

Installation Requirements Comparison

Soundproof panels normally need stronger mounting systems and sealed gaps to keep sound from leaking out. You can use simple mounting gear like Z-clips or glue to put up acoustic panels, and you can leave gaps between them. For complicated jobs, it is best to get a professional to install them to get the best results.

Measuring Effectiveness: NRC vs. STC Ratings

NRC and STC ratings are used to quantify how well soundproofing and acoustic materials block or absorb sound. To know how well they work, you need to know what these ratings indicate. The Acoustical Society of America says that these ratings give consumers quantitative information that might help them compare items.

The NRC evaluates how well a material absorbs sound waves in a space. NRC rates panels based on how well they absorb sound. The greater the absorption number, the better the panel. For instance, an NRC 0.8 panel can absorb 80% of sound energy.  It is good for cutting down on echoes in offices.

The traditional way to test how well soundproofing works is STC, which shows how well a substance can block sound transmission. The STC rating goes from 25 to 65+, with higher numbers meaning better sound blocking. An STC of 50 is good for walls in homes, but professional studios need 60 or higher.

The main difference between NRC and STC is what they are used for. NRC evaluates how well a place absorbs sound. STC measures how well a material keeps sound from flowing through walls or barriers to other locations. It’s important to know these numbers when choosing the correct materials for home, business, or professional audio settings. Statistics say that regular drywall has an STC of roughly 35, but adding MLV can raise it to 50.

When to Use Soundproof Panels

When dealing with noise problems, it’s important to know when to utilize soundproof panels. Soundproof panels are made to keep sound from moving across rooms, which makes them a useful solution for a lot of different places. However, the choice should take into account the bigger picture to avoid apps that don’t work.

Soundproof panels work best in places where sound leakage is a big problem, such as home theaters, recording studios, and bedrooms. Putting these panels on the walls can help keep sound from getting through. A hotel employed soundproof panels to fix up the walls of guest rooms, which made customers 25% happier.

Soundproof panels work well, but they have some problems. Soundproof panels alone cannot make an area entirely soundproof if there are still other ways for sound to get through. The weakest connection in the room’s exterior also limits how well soundproof panels work. Even little gaps can have a big effect on how well something works. Additionally, installing soundproofing materials throughout the space may cause inconvenience. It may require modifying existing walls or constructing new wall structures.

Moreover, while soundproofing panels can effectively block sound transmission, they do not address indoor acoustic issues. For example, echoes or reverberation. So, when choosing soundproofing solutions, these things must be taken into account. Based on industry standards, sealing both doors and windows can make the whole thing 20% more effective.

When to Use Acoustic Panels

To get the best sound, you need to know when to utilize acoustic panels. Acoustic panels are made to make the sound in a room better by cutting down on echoes, reverberation, and other sound reflections. They are not meant to block out sound, but rather to make the sound experience better.

Acoustic panels are great for places where sound quality is very important. For example, auditoriums, home theaters, and recording studios. They make the auditory environment more pleasant by soaking up sound waves. In an instance involving Polyester Acoustic Panels, student performance improved after they were installed in a school. Because they helped students focus better.

Acoustic panels do improve sound quality, but they have some drawbacks. They don’t stop sound from moving between rooms, and work less well at low frequencies. And if you use them too much, they can make a space feel “dead.” In practice, low-frequency problems need to be combined with bass traps to keep sound from being distorted.

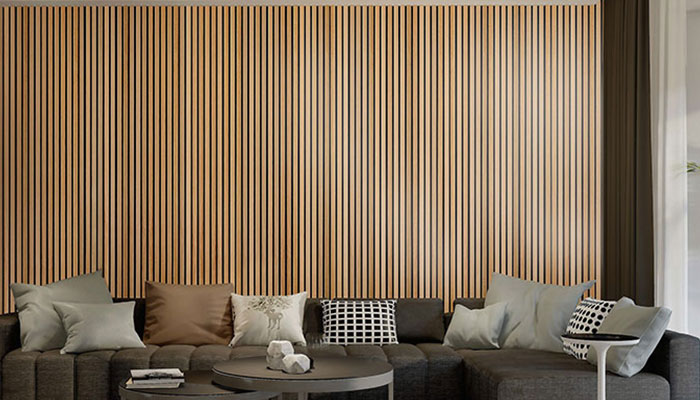

Choosing the Right Panels for Your Space

Choosing the right panels for your room is very important for getting the best sound management. It is important to know what your sound management needs are. And then pick panels that not only suit those demands but also look good in the room. The first step is to figure out what you need to manage sound.

Assessing Your Sound Control Needs

You need to figure out what kind of sound control you need before you can pick the correct panels. Think about what the room is for, how big it is, and any sound problems it already has. This evaluation will help you choose the best solutions. For instance, if your bedroom is sensitive to noise, soundproof it first. If your living room has a lot of echoes, work on the acoustics first.

Balancing Aesthetics and Functionality

When picking panels, it’s important to find a balance between looks and usefulness. There are many different ornamental coatings available for modern acoustic panels. COOWIN has a lot of ways to customize its acoustic panels so that they can be both useful and beautiful.

Conclusion

To handle sound well, it’s important to know the difference between soundproof and acoustic panels. Soundproof panels stop sound from getting through, while acoustic panels for walls make the sound in a room better. COOWIN has several high-quality acoustic wall panels to choose from. If you require personalized recommendations, please contact us. We will recommend the most suitable acoustic solutions for your project.

Frequently Asked Questions

What is the primary function of acoustic panels in a room?

The primary function of acoustic panels is to absorb sound waves. This reduces echoes and reverberation within a room, thereby improving sound quality. This can help make music or speeches crisper in real life by stopping sound from getting blurry.

How do I determine the right coverage for effective sound treatment in my room?

To determine the appropriate coverage area, you need to calculate the room’s coverage requirements. You should strategically place acoustic panels based on the room’s size, shape, and hard surface conditions to maximize effectiveness. It is recommended to cover 25-30% of surfaces and use tools like RT60 calculators for verification.

Can I use soundproofing materials for sound absorption?

No, soundproofing materials are designed to block sound transmission. Acoustic panels are designed to absorb sound waves. Using soundproofing materials for sound absorption may be ineffective.

What is the difference between NRC and STC ratings?

NRC (Noise Reduction Coefficient) measures a material’s ability to absorb sound. STC (Sound Transmission Class) measures a material’s ability to block sound transmission. Both are important for different sound control applications. For example, an NRC 0.7 indicates 70% sound absorption.
